Refrigerated Dryers

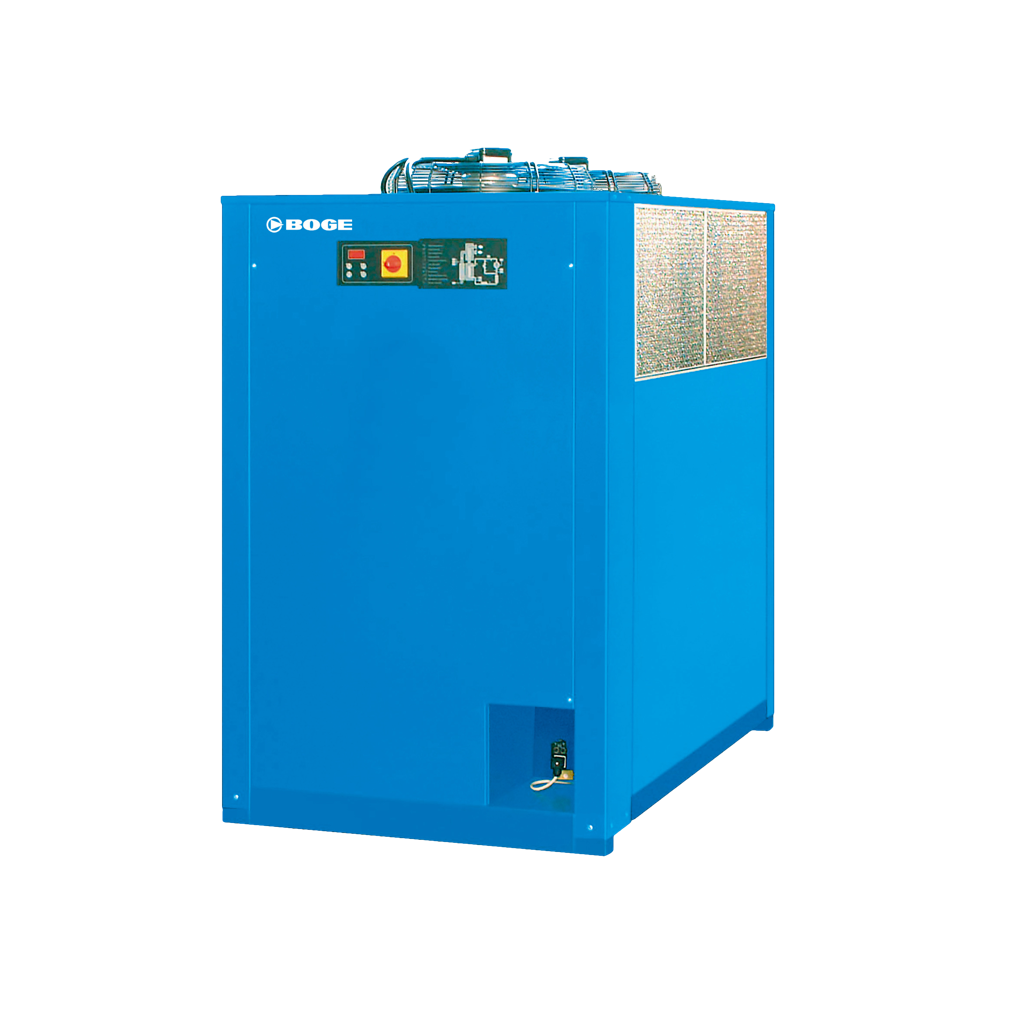

Boge Refigerated Dryers

Refrigerant dryers work on the principle that when air is cooled the water condenses and separates. The air is then reheated to about room temperature so that condensation doesn't occur on the outside of the compressed air pipes. Refrigerant dryers are available as free standing units or as an integrated drying module as part of the air compressor system.

Modern refrigerant dryers use refrigerant gases with a low GWP (Global Warming Potential) which dictates that gas from the refrigerant dryer when accidentally released into the atmosphere contribute less to global warming.

Take care to use the correct selection criteria when you size a dryer (or contact us for advice) as an under sized dryer will work great in winter but perform poorly in summer when the relative humidity increases. With dryers bigger is better!

All Boge DS series dryers are characterised by their extremely low pressure differential. This means that the generation pressure of upstream compressor can be optimised. Remember each one bar reduction in generation pressure saves around six percent in energy consumption - much more than with any other dryer systems.

RELIABLE PRESSURE DEW POINT

Thanks to their generously designed components, refrigerant dryers in the BOGE DS series maintain a constant pressure due point. This ensures consistently high compressed air quality with a low pressure diferential. All DS series dryers are equipped with a pressure dew point indicator.

INTELLIGENT DESIGN

These dryers incorporate proven and field tested components. The intelligent layout of the sturdy heat exchanger assembly is a guarantee for energy-saving operation. The hood is detachable for routine inspections and facilitates easy access to the complete inner workings.

MINIMAL PRESSURE LOSS

All DS dryers are characterised by their extremely low pressure loss. This allows the upstream compressor to deliver less pressure, thus avoiding overcompression. Energy savings of 6 percent are achieved for every bar of pressure saved - far higher than any other dryer systems.

ENVIRONMENTALLY FRIENDLY COOLANT

The R134a coolant is ozone neutral and, in conjunction with the recycable materials and the high energy efficiency, ensures maximum conservation of resources and modern and environmentally compatible dryer operation.

Dryer Specifications

The new DS-2 series from BOGE has now raised the bar for refrigerant dryers: Thanks to the fully integrated design of its highly efficient heat exchanger, the DS-2 upstages all other refrigerant dryers in terms of energy efficiency - with significantly reduced refrigerant consumption. The overall operating costs are indeed unbeatable ...

Model

Flow Capacity
m³/min
Max Pressure
bar
Power Consump.
kW
Refrigerant Req.
kg
Dimensions
W x D x H (mm)
Weight
Kg
Connection
BSPP-F acc.
DS 4-2 0.4 16 0.13 0.15 307 x 443 x 600 26 ½″
DS 7-2 0.7 16 0.14 0.15 307 x 443 x 600 26 ½″
DS 9-2 0.9 16 0.15 0.15 307 x 443 x 600 27 ½″
DS 14-2 1.4 16 0.15 0.18 337 x 593 x 665 35 ¾″
DS 18-2 1.8 16 0.15 0.16 337 x 593 x 665 36 ¾″
DS 26-2 2.6 16 0.29 0.3 407 x 673 x 795 46 1″
DS 32-2 0.4 16 0.3 0.3 407 x 673 x 795 46 1″
DS 40-2 4 16 0.31 0.3 407 x 673 x 795 47 1″
DS 52-2 5.2 16 0.46 0.4 407 x 673 x 795 53 1½″
DS 62-2 6.2 16 0.57 0.4 407 x 673 x 795 55 1½″
DS 80-2 8 14 0.73 0.74 450 x 778 x 970 100 1½″
DS 100-2 10 14 0.74 0.74 450 x 778 x 970 100 1½″

Compressed air drying can be so convenient: Due to the effective control, this series enables absolutely cost-efficient compressed air drying. Their extremely low pressure loss due to the generously designed components prevents overcompression. Compressor energy saving of six percent are achieved for every bar of pressure saved ...

Model

Flow Capacity
m³/min
Max Pressure
bar
Power Consump.
kW
Installed Power
kW
Connection

Cooling Air Req.
m³/h
Dimensions
W x D x H (mm)
Weight
Kg
DS 120 12 14 1.13 2.38 G2 2800 706 x 1046 x 1064 145
DS 140 14 14 1.14 2.38 G2 2800 706 x 1046 x 1064 145
DS 180 18 14 1.46 3.02 G2 4000 706 x 1046 x 1064 155
DS 220 22 14 1.68 3.41 G2 ½″ 7050 806 x 1166 x 1316 230
DS 260 26 14 2.19 4.47 G2 ½″ 7050 806 x 1166 x 1316 240
DS 300 30 14 2.41 5.27 G2 ½″ 7050 806 x 1166 x 1316 245
DS 350 35 14 3.06 6.26 G2 ½″ 7050 806 x 1166 x 1316 250
DS 460 46 14 3.14 6.26 DN 100 7050 1007 x 1245 x 1723 470
DS 520 52 14 3.54 7.46 DN 100 7050 1007 x 1245 x 1723 490
DS 630 63 14 4.64 9.92 DN 100 14100 1007 x 1657 x 1810 580
DS 750 75 14 5.73 11.32 DN 150 14100 1007 x 1657 x 1810 670
DS 900 90 14 7.63 16.26 DN 150 19000 1007 x 1657 x 1810 690
DS 1200 120 14 8.92 19.26 DN 150 19000 1007 x 1657 x 1807 830
DS 1500 150 14 12.35 25.64 DN 200 28500 1007 x 2257 x 2208 1100
DS 1800 180 14 15.96 31.04 DN 200 28500 1007 x 2257 x 2208 1190

Related Products

PRODUCT DETAIL BOGE C 10 LR Screw Compressor

Walker Filtration

Desiccant Dryers
PRODUCT DETAIL BOGE S 101 Screw COmpressor

Fusheng

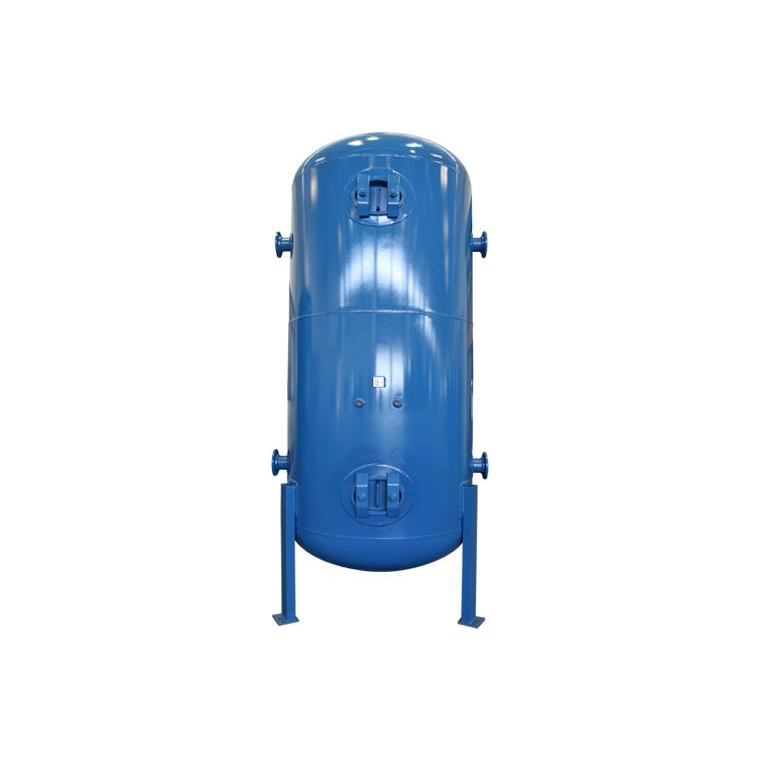

Air Receivers
PRODUCT DETAIL BOGE SL 340 Screw Compressor

Maxair

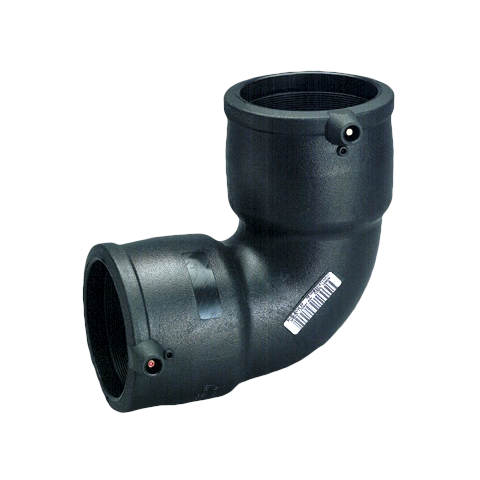

Pipe & Fittings
